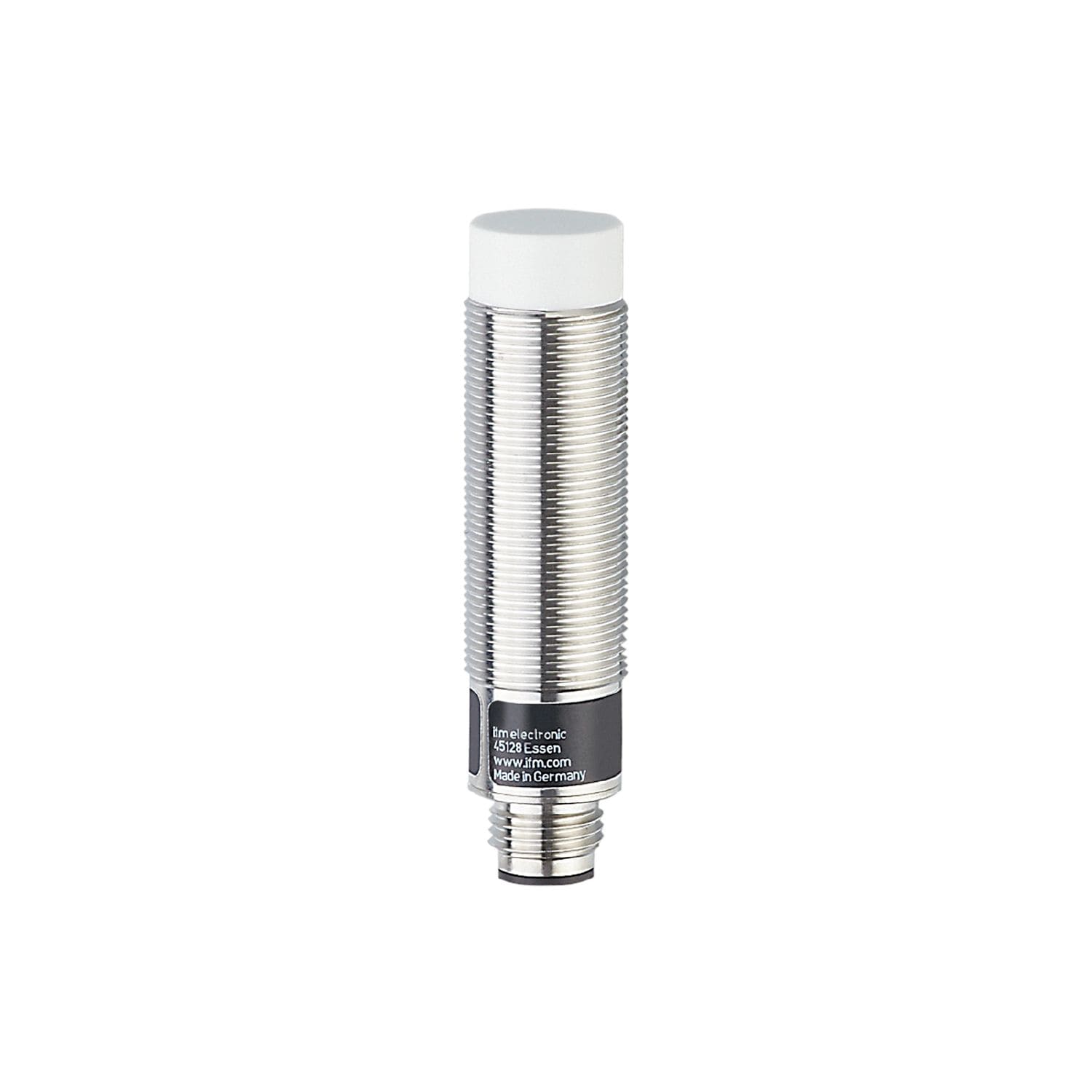

IFM IG0345 Inductive sensor

0.00

The price is not final. Please check with the manager!
SKU: IG0345 Categories: , , Tag:

IGK2012-ABOA/SL/LS100-AK RT

  • With combined AC/DC output and two-wire technology
  • Long sensing range for high uptime
  • Wide operating temperature range
  • Robust metal housing for use in hars
Contact Sales

Datasheet

Product characteristics
Output function normally open
Sensing range [mm] 12
Housing threaded type
Dimensions [mm] M18 x 1
Application
Special feature Increased sensing range
Electrical data
Operating voltage [V] 20…250 AC/DC
Protection class I
Reverse polarity protection no
Outputs
Output function normally open
Max. voltage drop switching output DC [V] 6
Max. voltage drop switching output AC [V] 6.5
Minimum load current [mA] 5
Max. leakage current [mA] 1 (250 V AC) / 0.8 (140 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC [mA] 250; (350 (…50 °C))
Permanent current rating of switching output DC [mA] 100
Short-time current rating of switching output [mA] 2200; (20 ms / 0,5 Hz)
Switching frequency AC [Hz] 25
Switching frequency DC [Hz] 90
Short-circuit proof no
Overload protection no
Detection zone
Sensing range [mm] 12
Operating distance [mm] 0…9.7
Increased sensing range yes
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4
Hysteresis [% of Sr] 3…15
Operating conditions
Ambient temperature [°C] -25…70
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 616
UL approval
Ta 0…40 °C
Enclosure type Type 1
power supply Hazardous voltage
File number UL E174191
Mechanical data
Weight [g] 63.2
Housing threaded type
Mounting non-flush mountable
Dimensions [mm] M18 x 1
Thread designation M18 x 1
Materials brass white bronze coated; PA; PBT
Displays / operating elements
Display
switching status 1 x LED, red
Electrical connection
Required protection miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories
Items supplied
lock nuts: 2
Remarks
Remarks
Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity 1 pcs.
Electrical connection – plug
Connector: 1 x 1/2″; coding: C
