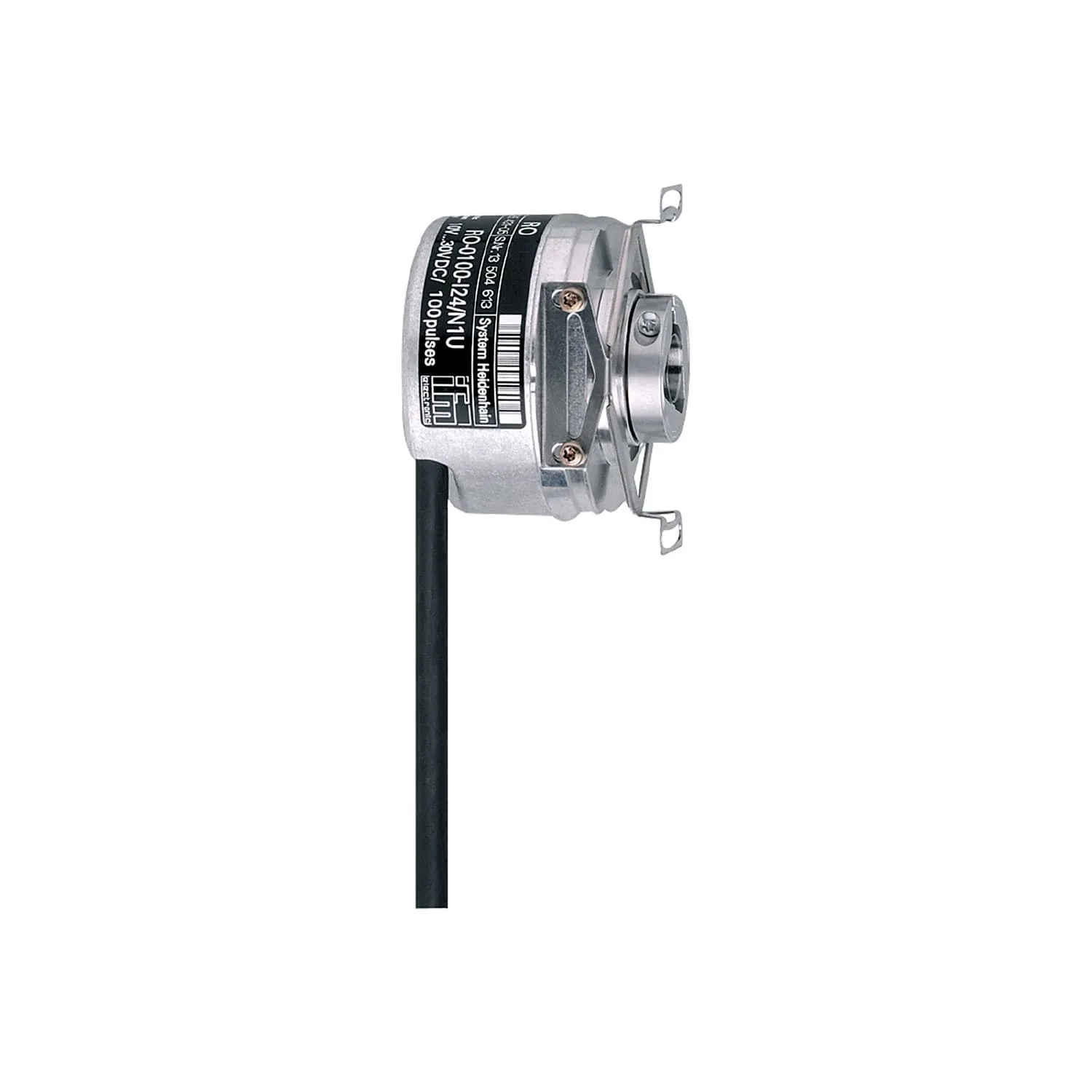

Datasheet
Product characteristics
| Resolution | 360 resolution |
|---|---|
| Shaft design | continuous hollow shaft |
| Shaft diameter [mm] | 12 |
Application
| Function principle | incremental |
|---|---|
| Detection system | photoelectric |
Electrical data
| Operating voltage tolerance [%] | 10 |
|---|---|
| Operating voltage [V] | 5 DC |
| Current consumption [mA] | < 150 |
Outputs
| Electrical design | TTL |
|---|---|
| Max. current load per output [mA] | 20 |
| Switching frequency [kHz] | 300 |
| Phase difference A and B [°] | 90 |
Measuring/setting range
| Resolution | 360 resolution |
|---|
Operating conditions
| Ambient temperature [°C] | -30…100 |
|---|---|
| Max. relative air humidity [%] | 98 |
| Protection | IP 64; (on the housing: IP 66; on the shaft: IP 64) |
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
Mechanical data
| Weight [g] | 724.2 | |
|---|---|---|
| Dimensions [mm] | Ø 58 / L = 54.4 | |
| Materials | aluminium | |
| Max. revolution, mechanical [U/min] | 12000; (when using both shaft clamping rings) | |
| Max. starting torque [Nm] | 2.5 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | continuous hollow shaft | |
| Shaft diameter [mm] | 12 | |
| Shaft fit | H7 | |
| Shaft material |
|
|
| Installation depth of shaft [mm] | 10 | |
| Max. axial shaft misalignment [mm] | 1; (max. radial shaft alignment: ± 0,05 mm) |
Electrical connection
| Cable: 6 m, PUR; radial, can also be used axially |
Diagrams and graphs
|
Pulse diagram
|
|
|---|
