Schneider HMIDT551

0.00

The price is not final. Please check with the manager!

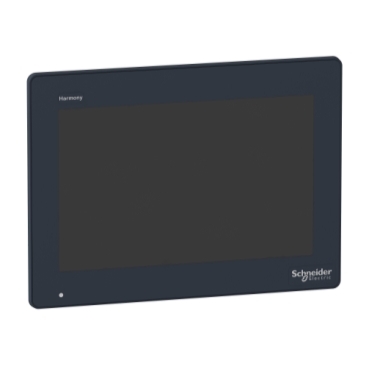

Schneider Electric Advanced touchscreen panel, Harmony GTU, 10 W Touch Display WXGA

Contact Sales

Datasheet

Main
Range of product Harmony GTU
Product or component type Advanced touchscreen panel
terminal type Touchscreen display
[Us] rated supply voltage 12…24 V DC power supply
Supply voltage limits 10.8…28.8 V
Power consumption in W 6.5 W
Inrush current 30 A
Complementary
Touchscreen resolution 1024 x 1024
Pixel resolution 1280 x 800
Display size 10.1 inch
Aspect ratio 4:3
Display type Colour TFT LCD
Display resolution 1280 x 800 pixels WVGA
Display colour 262144 colors
Backlight lifespan 50000 hours
Touch panel Single touch analogue resistive
Type of cooling Natural convection
Type of installation Indoor installation
Cut-out dimensions 255 (+ 1/- 0) x 185 (+ 1/- 0) mm
Width 268.5 mm
Height 198.5 mm
Depth 67 mm
Net weight 2.5 kg
Environment
IP degree of protection Front panel: IP66
Front panel: IP67
NEMA degree of protection NEMA 4X front panel
Standards UL 508
ANSI/ISA 12-12-01
Class I division 2 CSA C22.2 No 213
CSA C22.2 No 142
IEC 61132-2
Product certifications RCM
CULus
KC
CE
UKCA
UKEX
Ambient air temperature for operation 0…60 °C conforming to EN 61131-2
Ambient air temperature for storage -20…60 °C
Relative humidity 10…90 % non-condensing
Operating altitude 2000 m
Vibration resistance 3.5 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2
9.8 m/s² (f = 9…150 Hz) conforming to EN/IEC 61131-2
Shock resistance 147 m/s² conforming to EN/IEC 61131-2
Electromagnetic compatibility Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 21 cm
Package 1 Width 33 cm
Package 1 Length 37 cm
Package 1 Weight 3.853 kg
Unit Type of Package 2 CAR
Number of Units in Package 2 2
Package 2 Height 43 cm
Package 2 Width 35.5 cm
Package 2 Length 45.5 cm
Package 2 Weight 8.769 kg
Unit Type of Package 3 P12
Number of Units in Package 3 10
Package 3 Height 80 cm
Package 3 Width 120 cm
Package 3 Length 110 cm
Package 3 Weight 96.69 kg
Contractual warranty
Warranty 18 months
