Schneider SXWRTD16X10001

0.00

The price is not final. Please check with the manager!
SKU: SXWRTD16X10001 Categories: , Tag:

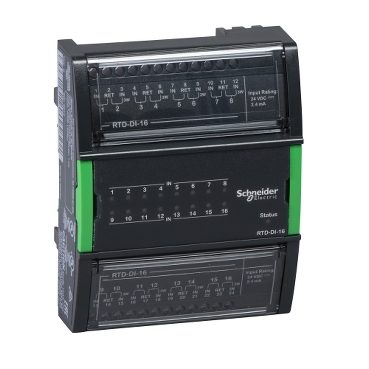

Schneider Electric Central I/O module, SpaceLogic, 16 RTD/digital inputs

Contact Sales

Datasheet

Main
Device short name RTD-DI-16
Product or component type I/O module
Net weight 146 g
Flame retardance UL94V0-5VB
Height 114 mm
Product certifications ICES-003
FCC part 15 class B
CE
RCM
Width 30 mm
Power consumption in VA 1.6 W
Depth 64 mm
Ambient air temperature for operation 0…50 °C
IP degree of protection IP20
Ambient air temperature for storage -20…70 °C
Input/output type digital input
Relative humidity 0…95 % non-condensing
Product name I/O Modules
Product brand Schneider Electric
Range EcoStruxure Building Operation
Complementary
Control type Without
Electrical connection Plug-in sub-base
Switching frequency 25 Hz
Discrete input number 16
Discrete input voltage 24 V
Mounting support Wall
DIN rail
Local signalling LED (green/red) for high signal level
LED (green/red) for low signal level
Range compatibility EcoStruxure Building Operation TB-IO-W1 terminal base
Standards UL 864
UL 916
FCC CFR 47 part 15
Material ABS + PC
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 5.7 cm
Package 1 Length 11.8 cm
Package 1 Weight 173.2 g
