Schneider SXWUI16XX10001

0.00

The price is not final. Please check with the manager!
SKU: SXWUI16XX10001 Categories: , Tag:

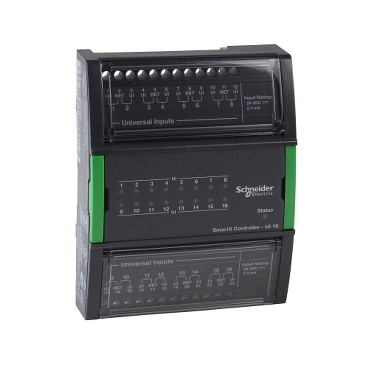

Schneider Electric Central I/O module, SpaceLogic, 16 universal inputs

Contact Sales

Datasheet

Main
Device short name UI-16
Product or component type I/O module
Net weight 146 g
Flame retardance UL94V0-5VB
Height 114 mm
Product certifications ICES-003
FCC part 15 class B
CE
RCM
Width 30 mm
Power consumption in VA 1.8 W
Depth 64 mm
Ambient air temperature for operation 0…50 °C
IP degree of protection IP20
Ambient air temperature for storage -20…70 °C
Input/output type universal input
Relative humidity 0…95 % non-condensing
Product name I/O Modules
Product brand Schneider Electric
Range EcoStruxure Building Operation
Complementary
Control type Without
Product compatibility I/NET
Balco
Xenta
Continuum
Honeywell
Johnson Control
Satchwell
Electrical connection Plug-in sub-base
Discrete input number 16
Discrete input voltage 24 V
Mounting support DIN rail
Wall
Analogue input type Configurable voltage, current or probe 0…20 mA
Configurable voltage, current or probe 0…10 V input voltage
Configurable voltage, current or probe 20 kOhm connection of probes
Configurable voltage, current or probe 10 kOhm connection of probes
Configurable voltage, current or probe 2.2 kOhm connection of probes
Configurable voltage, current or probe 1.8 kOhm connection of probes
Configurable voltage, current or probe 1 kOhm connection of probes
Configurable voltage, current or probe 10 kOhm with shunt
Local signalling LED (green/red) for high signal level
LED (green/red) for low signal level
Range compatibility EcoStruxure Building Operation TB-IO-W1 terminal base
Standards UL 864
UL 916
FCC CFR 47 part 15
Material ABS + PC
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.0 cm
Package 1 Width 5.7 cm
Package 1 Length 11.7 cm
Package 1 Weight 171.0 g
