Schneider HMIDM7521

0.00

The price is not final. Please check with the manager!

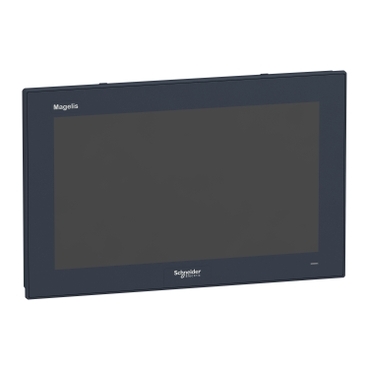

Schneider Electric Flat screen, Harmony Modular iPC, Display PC Wide 15” multi touch for HMIBM

Contact Sales

Datasheet

Main
Range of product Harmony iPC
Product or component type Flat screen
terminal type Touchscreen display
Device mounting Flush
Product compatibility Modular Box PC
Complementary
view angle horizontal x vertical 150 x 140°
Contrast ratio 500:1
Pixel resolution 1366 x 768
Touchscreen resolution 4096 x 4096
Display resolution 1366 x 768 pixels WHD FWXGA
Display size 15.6 inch
Aspect ratio 16:9
Display type Colour TFT LCD
LED
Display colour 16777216 colors
Luminance 300 cd/m²
Backlight lifespan 50000 hours at 25 °C
Touch panel Multi-touch projected capactive technology (PCT)
function available Operate with water on screen
[Us] rated supply voltage 24 V DC power supply
100…240 V AC power supply
Supply voltage limits 18…36 V
Inrush current 8.9 A
Power consumption in W 54.5 W (Box PC HMIBMP)
49.5 W (Box PC HMIBMU)
Local signalling Status LED
Depth 28 mm enclosure:
7 mm
Height 269 mm
Width 419.7 mm
Net weight 4.3 kg
Environment
Standards Class I division 2 CSA C22.2 No 213
CSA C22.2 No 142
UL 6110-2-201
Class I division 2 ANSI/ISA 12-12-01
Product certifications IEC-Ex
C-Tick
EAC
Marine GL Bridge
ATEX
CE
IP degree of protection IP66
NEMA degree of protection NEMA 4X
Pollution degree 2
Ambient air temperature for storage -30…70 °C
Relative humidity 10…95 % non-condensing
Ambient air temperature for operation 0…55 °C
Operating altitude 2000 m
Vibration resistance 1 gn (f = 5…500 Hz) HDD
2 gn (f = 5…500 Hz) SSD
2 gn (f = 5…500 Hz) Cfast card
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 2.8 cm
Package 1 Width 26.9 cm
Package 1 Length 42.0 cm
Package 1 Weight 4.3 kg
