Schneider BMEH582040S

0.00

The price is not final. Please check with the manager!
SKU: BMEH582040S Categories: , Tag:

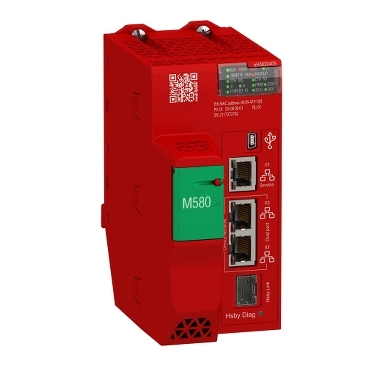

Schneider Electric Redundant Safety processor, Modicon M580, 8MB, 61 Ethernet devices, 8 Remote I/O racks

Contact Sales

Datasheet

Main
Range of product Modicon M580
Product or component type Redundant processor module
Impregnation material Conformal coated
Complementary
Number of racks 1
Application specific I/O Counter
Motion control
SSI encoder
Accurate time stamping
Serial link
HART
Checks Process control
Safety control
Control channels Programmable loops
Integrated connection type 1 Ethernet TCP/IP for service port
2 Ethernet TCP/IP for device network
USB type mini B
1 Ethernet for HSBY port
Number of remote I/O station 8 – 2 rack(s) per remote drop
Number of distributed equipment 61
Communication module processor capacity 4.0 Ethernet communication module
16.0 AS-Interface module
Communication service DIO scanner
RIO scanner
Memory description Expandable flash, 4 GB for data storage
Integrated RAM, 10 kB for system memory
Integrated RAM, 8 MB for program process
Integrated RAM, 768 kB for data process
Integrated RAM, 2 MB for program safety
Integrated RAM, 512 kB for data safety
Application structure 1 master task
1 periodic fast task
1 periodic safe task
Number of instructions per ms 10 Kinst/ms 100 % Boolean
7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
Current consumption 360 mA at 24 V DC
MTBF reliability 638000 H
Marking CE
Environment
Vibration resistance 3 gn
Shock resistance 15 gn
Ambient air temperature for operation -25…60 °C
Ambient air temperature for storage -40…85 °C
Operating altitude 0…2000 m
2000…5000 m with derating factor
Relative humidity 5…95 % at 55 °C without condensation
IP degree of protection IP20
Directives 2014/30/EU – electromagnetic compatibility
2006/42/EC – machinery
2014/34/EU – ATEX directive
Product certifications CE
UL
CSA
RCM
EAC
Merchant Navy
ATEX zone 2/22
IECEx zone 2/22
TÜV
Standards EN/IEC 61131-2
EN/IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5, interface type 1 and type 2
EN/IEC 61850-3, location G
EN/IEC 60079-0
EN 50155
EN 50121-3-2
EN 50121-4
EN 50121-5
EN 45545-2
IEC 60571
IEC 62236-3-2
IEC 62234-4
IEC 62234-5
Environmental characteristic Hazardous location class I division 2
Gas resistant class Gx conforming to ISA S71.04
Gas resistant class 3C4 conforming to IEC 60721-3-3
Dust resistant class 3S4 conforming to IEC 60721-3-3
Sand resistant class 3S4 conforming to IEC 60721-3-3
Salt resistant level 2 conforming to IEC 68252
Mold growth resistant class 3B2 conforming to IEC 60721-3-3
Fungal spore resistant class 3B2 conforming to IEC 60721-3-3
Protective treatment Conformal coating
Safety level SIL 3 conforming to IEC 61508
SIL 3 conforming to IEC 61511
SILCL 3 conforming to IEC 62061
SILCL 3 conforming to ISO 13849-1 category 4
SIL 4 conforming to EN 50126
SIL 4 conforming to EN 50128
SIL 4 conforming to EN 50129
Supply Internal power supply via rack
Status LED 1 LED (green) processor running (RUN)
1 LED (red) processor or system fault (ERR)
1 LED (red) I/O module fault (I/O)
1 LED (green) download in progress (DL)
1 LED (red) memory card or CPU flash fault (BACKUP)
1 LED (green/red) ETH MS (Ethernet port configuration status)
1 LED (green/red) Eth NS (Ethernet network status)
1 LED (green) peer processor running (REMOTE RUN)
1 LED (green) processor ID set to A (A)
1 LED (green) processor ID set to B (B)
1 LED (green) processor acting as Primary (PRIM)
1 LED (green) processor acting as Standby (STBY)
1 LED (red) I/O values overrided by user (FORCED IO)
1 LED (green) processor in safety mode (SRUN)
1 LED (green) processor in maintenance mode (SMOD)
1 LED (green) Hot standby link status (Hsby Diag)
Net weight 0.849 kg
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 9.000 cm
Package 1 Width 18.000 cm
Package 1 Length 25.000 cm
Package 1 Weight 893.000 g
Unit Type of Package 2 S03
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.854 kg
