Datasheet

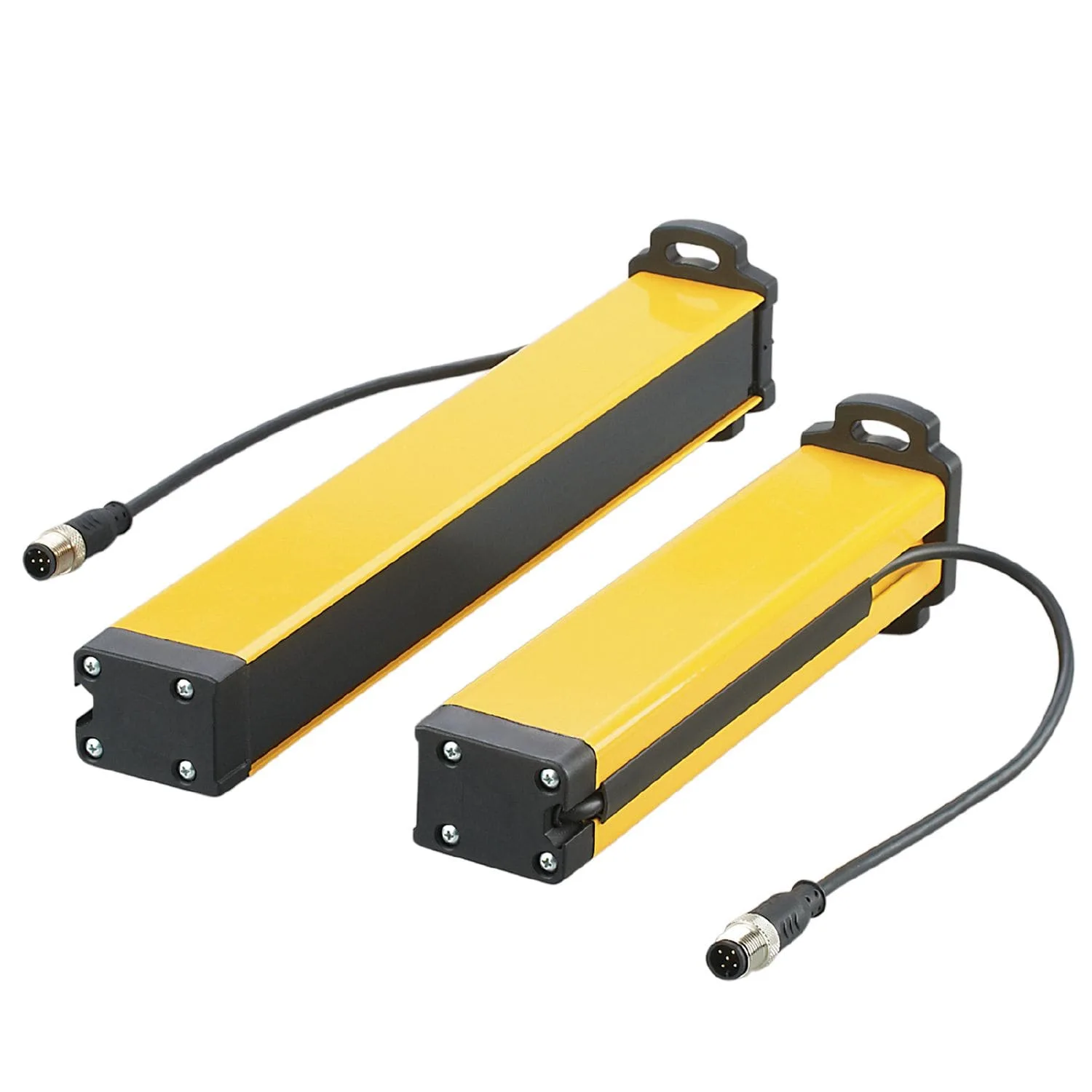

Product characteristics
| Type of light | infrared light |
|---|
Application
| Design | crossbeam muting with two through-beam sensors |
|---|---|
| Function principle | Through-beam sensor |
Electrical data
| Operating voltage [V] | 19.2…28.8 DC |
|---|---|
| Current consumption [mA] | 120; (transmitter: 60; receiver: 60) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length [nm] | 940 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 0.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Range [m] | < 2.5 |
|---|
Operating conditions
| Ambient temperature [°C] | -30…55 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 3000 | |
|---|---|---|
| Materials | aluminium; polypropylene | |
| Lens material |
|
Remarks
| Pack quantity | 4 pcs. |
|---|
Electrical connection – receiver 1
| Connection | Connector: 1 x M12; coding: A; Moulded body: blue |
|---|
Electrical connection – receiver 2
| Connection | Connector: 1 x M12; coding: A; Moulded body: red |
|---|
Electrical connection – transmitter 1
| Connection | Connector: 1 x M12; coding: A; Moulded body: blue |
|---|
Electrical connection – transmitter 2
| Connection | Connector: 1 x M12; coding: A; Moulded body: red |
|---|
