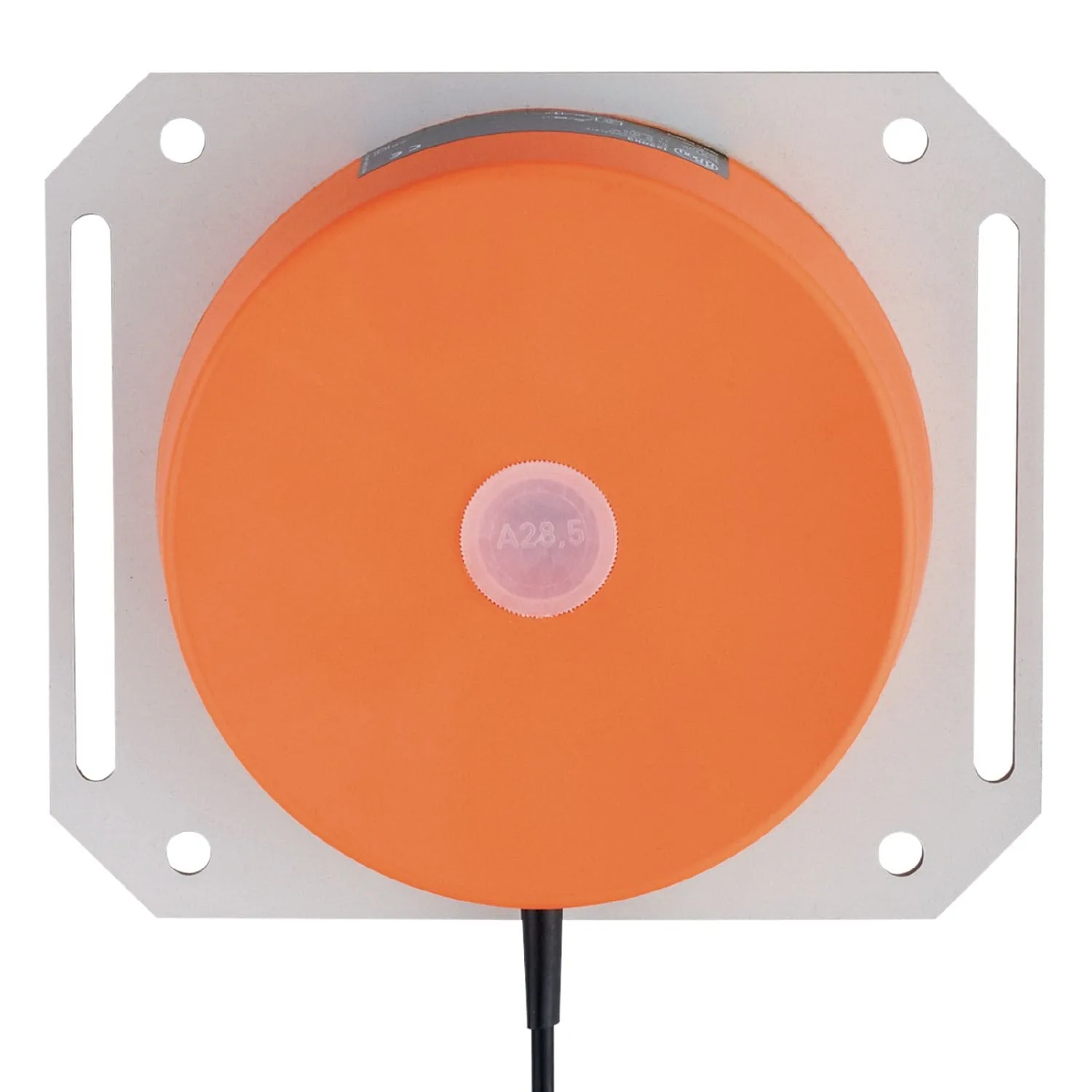

SIY-3120-BPKG/A-PLATE
- Long sensing range of 120 mm
- Active base with Ø 164 mm
- For applications in the steel and metal industries
- Easy setting of the sensing range via potentiometer
Contact Sales
Datasheet
Product characteristics
| Electrical design |
PNP |
| Output function |
normally open |
| Sensing range [mm] |
30…120 |
| Housing |
cylindrical |
| Dimensions [mm] |
Ø 164 / L = 68 |
Electrical data
| Operating voltage [V] |
10…36 DC |
| Current consumption [mA] |
15; (24 V) |
| Protection class |
II |
| Reverse polarity protection |
yes |
Outputs
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
250 |
| Switching frequency DC [Hz] |
3 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
Detection zone
| Sensing range [mm] |
30…120 |
| Sensing range adjustable |
yes |
| Factory setting sensing range [mm] |
120 |
| Real sensing range Sr [mm] |
120 ± 10 % |
Accuracy / deviations
| Correction factor |
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2 |
| Hysteresis [% of Sr] |
< 15 |
| Switch point drift [% of Sr] |
-15…15 |
Operating conditions
| Ambient temperature [°C] |
-20…70 |
| Protection |
IP 65 |
Mechanical data
| Weight [g] |
1639.5 |
| Housing |
cylindrical |
| Mounting |
non-flush mountable |
| Type of mounting |
with mounting plate |
| Dimensions [mm] |
Ø 164 / L = 68 |
| Materials |
housing: PBT; Mounting plate: aluminium anodised |
Displays / operating elements
| Display |
|
switching status |
1 x LED, yellow |
|
Electrical connection
| Connection |
Cable: 2 m, PVC; 3 x 0.5 mm² |
