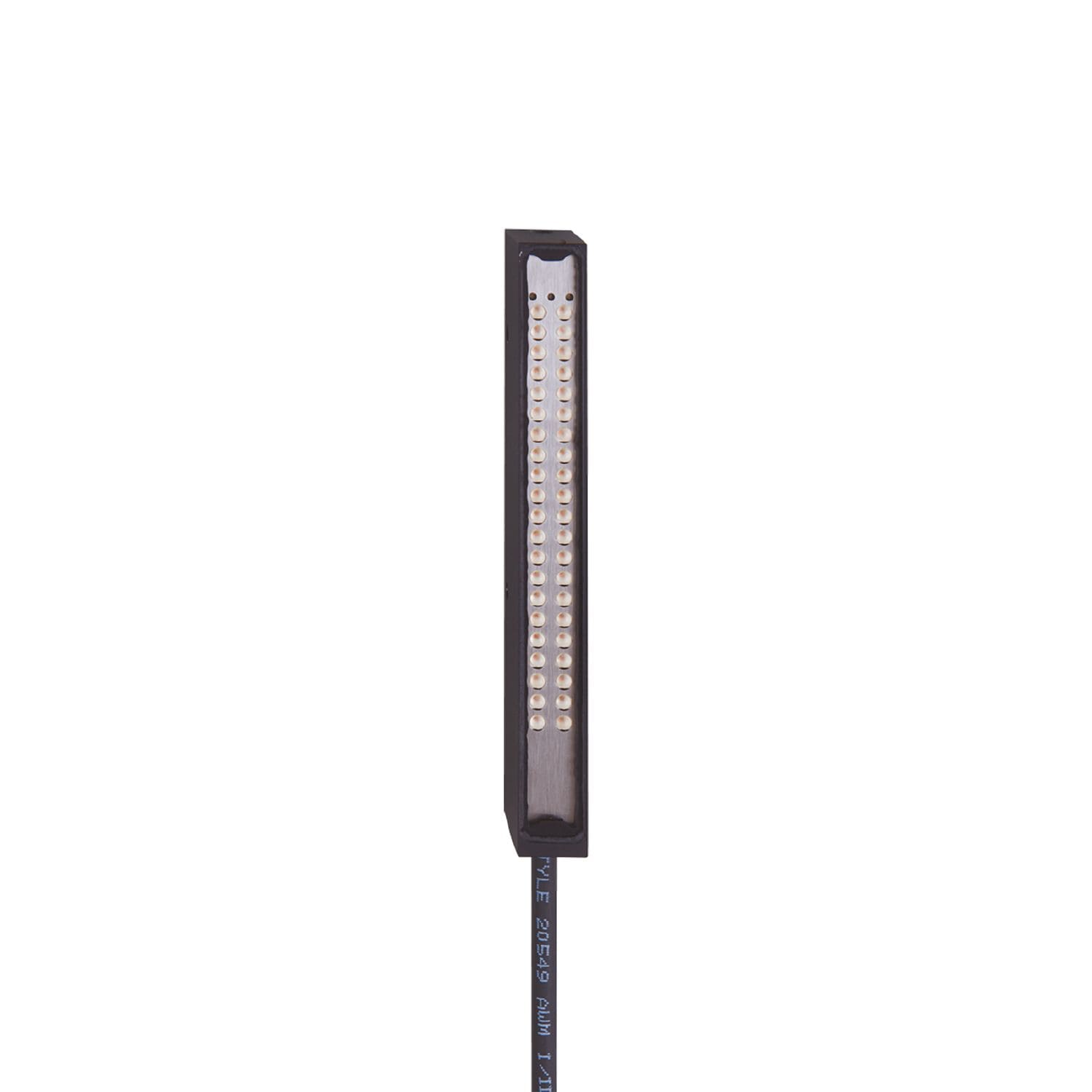

IFM O2D922 External illumination

0.00

The price is not final. Please check with the manager!

BAR LIGHT 10×75 IR/0,3M/US

  • Homogeneous and virtually shadow-free illumination of the object
  • Permanent light or pulse operation
  • Pulse operation with higher light intensity to reduce the exposu
Ask a Question

Datasheet

Product characteristics
Type of light infrared light
Application
Illuminated field [mm] 10 x 75
Design bars
Type of operation high light intensity (pulsed, permanent operation with cooling only); normal light intensity (permanent operation possible)
Electrical data
Operating voltage [V] 24 DC
Current consumption [mA] operating mode “permanent operation”: 185; operating mode “high light intensity”: 325
Type of light infrared light
Wave length [nm] 875
Inputs
Trigger 24 V PNP
Operating conditions
Ambient temperature [°C] -10…55
Storage temperature [°C] -25…75
Protection IP 65
Overheat protection yes; (deactivation at 65…75 °C)
Tests / approvals
Photobiological safety risk group 1; (DIN EN 62471:2008; Do not stare into light source.; danger of glare and irritations; Align the device to prevent eye exposure to the light source.)
Mechanical data
Weight [g] 181
Dimensions [mm] 116 x 13 x 18
Materials aluminium black anodised
Lens material
glass
Displays / operating elements
Display
illumination status 1 x LED, yellow
operation 1 x LED, green
excess temperature 1 x LED, red
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 0.3 m, PUR, black; 4 x 0.34 mm²
Connection Connector: 1 x M12; coding: A
