Schneider SXWASB36X10001

0.00

The price is not final. Please check with the manager!
SKU: SXWASB36X10001 Categories: , Tag:

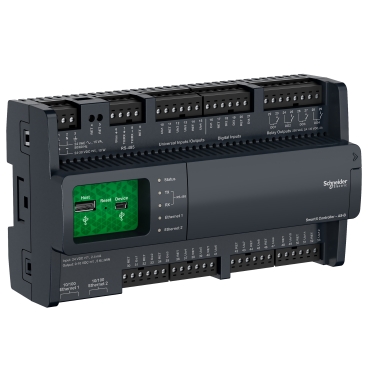

Schneider Electric Automation server, SpaceLogic Plant Room Servers, AS-B-36, 36 I/O points, BACnet, MS/TP, modbus

Contact Sales

Datasheet

Main
Device short name AS-B-36
Product or component type Controller system
Communication service Modbus TCP server
SMTPS e-mail notification
SMTP e-mail notification
Modbus TCP client
SNMP network management
Product certifications ICES-003
BTL
FCC part 15 class B
cULus
CE
RCM
Width 198 mm
Power consumption in W 10 W
Power consumption in VA 15 VA
Network frequency 60 Hz
50 Hz
Display type FSTN transflective LCD
clock drift +/- 52 s/month
Display resolution 128 x 64 pixels
IP degree of protection IP20
Ambient air temperature for storage -20…70 °C
Ambient air temperature for operation 0…50 °C
Input/output type 28 universal I/O
Relative humidity 0…95 % non-condensing
Memory type 256 MB FRAM
2 GB flash
[Us] rated supply voltage 19…29 V AC
21…33 V DC
Number of outputs 4 relay
4 triac
Height 114 mm
Product weight 5.04 kg
Depth 64 mm
Number of port 2 ETHERNET
Range EcoStruxure Building Operation
Complementary
Product compatibility Xenta
Johnson Control
Balco
Continuum
Satchwell
I/NET
Honeywell
Product brand Schneider Electric
Switching frequency 25 Hz
web services HTTP server
Programmable scripts : alarm summaries, report management
TLS 1.0
Display colour Monochrome
Mounting support DIN rail
Flame retardance UL94V0-5VB
Electrical connection plug-in sub-base
terminal with a manual overide switch
Supply Power supply: 24 V, <0.5 A
Integrated connection type USB 2.0 type A
USB type mini B
Ethernet with RJ45 connector
Serial link with RS485 connector
Analogue input type Configurable voltage, current or probe 0…20 mA
Configurable voltage, current or probe 0…10 V input voltage
Configurable voltage, current or probe 20 kOhm connection of probes
Configurable voltage, current or probe 10 kOhm connection of probes
Configurable voltage, current or probe 2.2 kOhm connection of probes
Configurable voltage, current or probe 1.8 kOhm connection of probes
Configurable voltage, current or probe 1 kOhm connection of probes
Configurable voltage, current or probe 10 kOhm with shunt
Display type FSTN transflective LCD 36 x 17 mm
Communication port protocol BACnet
Modbus TCP master RS485
Modbus TCP slave RS485
HTTPS RJ45
HTTP RJ45
Realtime clock With
Processor name Spear 320s
Standards UL 916
FCC CFR 47 part 15
Material ABS/PC
Environment
Temperature probe type LG-Ni 1000 – 50…150 °C
Ni 1000 – 50…150 °C
Pt 1000 – 50…150 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.8 cm
Package 1 Width 11.5 cm
Package 1 Length 20.0 cm
Package 1 Weight 464.0 g
Unit Type of Package 2 S03
Number of Units in Package 2 12
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 6.281 kg
