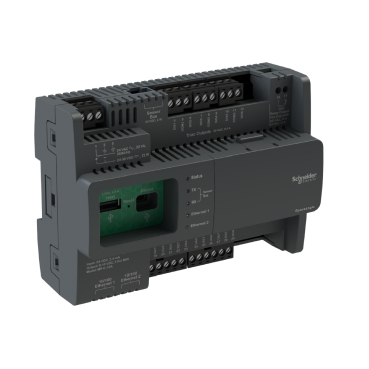

Schneider SXWMPC18B10001

0.00

The price is not final. Please check with the manager!
SKU: SXWMPC18B10001 Categories: , Tag:

Schneider Electric Controller, SpaceLogic IP, MP-C, BACnet/IP, 18 points, 10 universal input/output Type Ub, 8 digital Triac outputs

Contact Sales

Datasheet

Main
Device short name MP-C-18B
function available Programmable
Smart sensor input
Product or component type Field controller
Maximum number of I/O expansion module 3
Device application Low voltage fan coil
Low voltage heat pump
Low voltage rooftop
Air flow control
Topology Star
Daisy chain
Rapid Spanning Tree Protocol (RSTP)
Model MP-C-18B
Product certifications RCM
CE
cUL listed
UL listed
Mounting mode DIN rail mount
Panel-mounted
Width 153 mm
Power consumption in W 12 W
Power consumption in VA 22 VA
Network frequency 50 Hz
60 Hz
clock drift +/- 1 min/month
IP degree of protection IP20
Ambient air temperature for storage -40…70 °C
Input/output type 10 universal I/O
Input voltage -0.5…24 V DC for universal input
Memory type 123 kB backup
32 MB flash
128 MB RAM
Communication port support ETHERNET 10/100BASE-TX
[Us] rated supply voltage 24 V AC +/- 20 %
24…30 V DC
21…33 V DC
Number of outputs 8 triac output
Depth 64 mm
Protection type MOV suppression
Internal fuse
Output voltage -0.5…24 V DC for universal output
24 V AC for triac output
Output current 0.5 A max triac output
Number of port 2, connector type: RJ45
1, connector type: USB type A female
1, connector type: USB device port Mini-B
Complementary
Backup time 7 days
Flame retardance UL94-5V
Communication port protocol BACnet IP
Standards UL 916
ICES-003
EN 61000-6-2
EN 50491-5-3
EN 60730-1
EN 60730-2-11
EN 50491-3
EN 61000-6-3
EN 50491-5-2
FCC part 15 Subpart B class B
Range compatibility SpaceLogic IP controller
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.0 cm
Package 1 Width 12.4 cm
Package 1 Length 16.3 cm
Package 1 Weight 417.0 g
