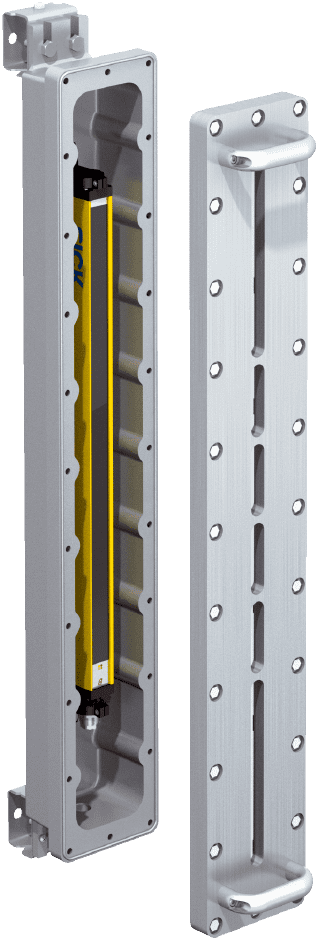

Sick EXE-12C6603B020

Name: Sick EXE-12C6603B020
Brand: Sick
SKU: EXE-12C6603B020
Price: 7718.89 EUR
Availability: InStock

€7718.89

The price is not final. Please check with the manager!

SKU: EXE-12C6603B020 Categories: Safety light curtains, Sick Brand: Sick

Sick Safety light curtains C4000 Advanced Ex / Pair

Contact Sales

Delivery time 3–10 business days. Express available.

Returns 14 days return. New condition only.

Shipping EU, USA, worldwide.
DHL, DPD, UPS.

Sick Safety light curtains C4000 Advanced Ex / Pair

Datasheet

Application	Explosive areas
Ex-approvals	ATEX for gas: II 2 G Ex db IIB T6 ATEX for dust: II 2 D Ex tb IIIC T56°C Db IP6X NFPA 70/NEC 500 Class I, Div. 1, Groups C and D NFPA 70/NEC 500 Class II, Div. 1, Groups E, F and G NFPA 70/NEC 500 Class III, Div. 1
System part	Pair
Resolution	30 mm
Protective field height	1,200 mm
Scanning range	16 m
Response time	13 ms
Synchronization	Optical synchronisation

Safety-related parameters

Type	Type 4 (IEC 61496-1)
Safety integrity level	SIL3 (IEC 61508) SILCL3 (EN 62061)
Category	Category 4 (EN ISO 13849)
Performance level	PL e (EN ISO 13849)
PFH_D (mean probability of a dangerous failure per hour)	15 x 10^-9 (EN ISO 13849)
T_M (mission time)	20 years (EN ISO 13849)
Safe state in the event of a fault	At least one OSSD is in the OFF state.

Functions

	Functions	Delivery status
Protective operation	✔
Restart interlock	✔	External
External device monitoring (EDM)	✔	Deactivated
Beam coding	✔	Uncoded
Configurable scanning range	✔	0 m … 5 m
Safe SICK device communication via EFI	✔

Interfaces

System connection	Connecting cable (30 m) with flying leads, 12-wire
Cable diameter	10 mm
Conductor cross section	0.75 mm²

Configuration connection

Female connector M8, 4-pin

Configuration method

PC with CDS (Configuration and Diagnostic Software)

Display elements

7-segment display

Electrical data

Protection class

III (IEC 61140)

Supply voltage V_S

24 V DC (19.2 V … 28.8 V) ¹⁾

Residual ripple

≤ 10 % ²⁾

Output signal switching devices (OSSDs)
Type of output	2 PNP semiconductors, short-circuit protected, cross-circuit monitored ³⁾
ON state, switching voltage HIGH	24 V DC (V_S – 2.25 V DC … V_S)
OFF state, switching voltage LOW	≤ 3.5 V DC
Current-carrying capacity per OSSD	≤ 500 mA

Application diagnostic output (ADO)
Type of output	PNP semiconductor, short-circuit protected ³⁾
Output voltage HIGH (active)	24 V DC (V_S – 4.2 V DC … V_S)
Output voltage LOW (deactivated)	High resistance
Output current HIGH (active)	≤ 100 mA
