Datasheet

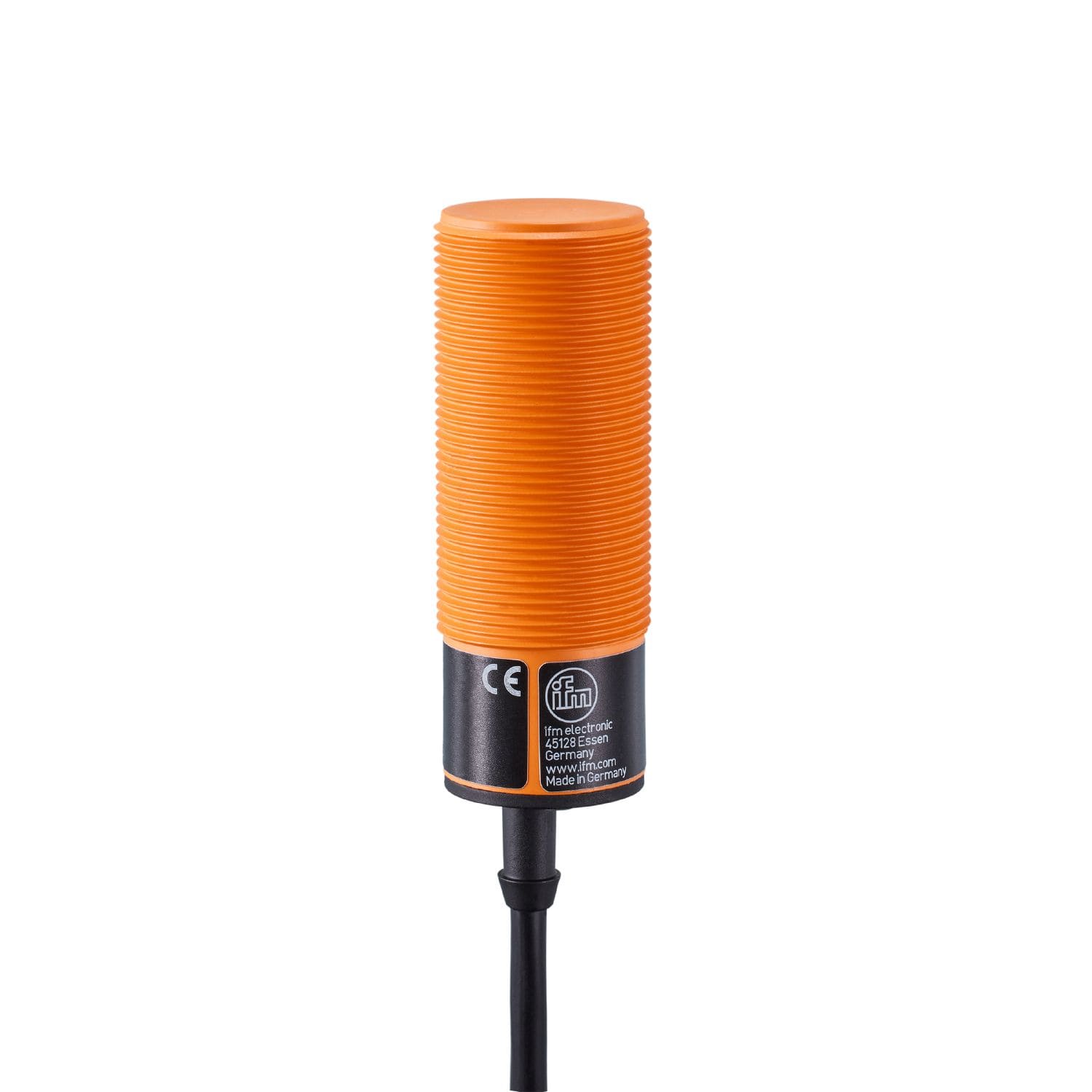

Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range [mm] | 3…15 |
| Housing | threaded type |
| Dimensions [mm] | M30 x 1.5 / L = 81 |
Electrical data
| Operating voltage [V] | 10…36 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Short-time current rating of switching output [mA] | 250 |
| Switching frequency DC [Hz] | 40 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range [mm] | 3…15 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range [mm] | 15 |
| Real sensing range Sr [mm] | 15 ± 10 % |
| Operating distance [mm] | 0…12.1 |
Accuracy / deviations
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1…15 |
| Switch point drift [% of Sr] | -15…15 |
Operating conditions
| Ambient temperature [°C] | -25…80 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| MTTF [years] | 692 |
|---|
Mechanical data
| Weight [g] | 102.5 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions [mm] | M30 x 1.5 / L = 81 |
| Thread designation | M30 x 1.5 |
| Materials | PBT |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection – plug
| Cable: 0.1 m, PUR | |
| Connector: 1 x M12; coding: A |
