Datasheet

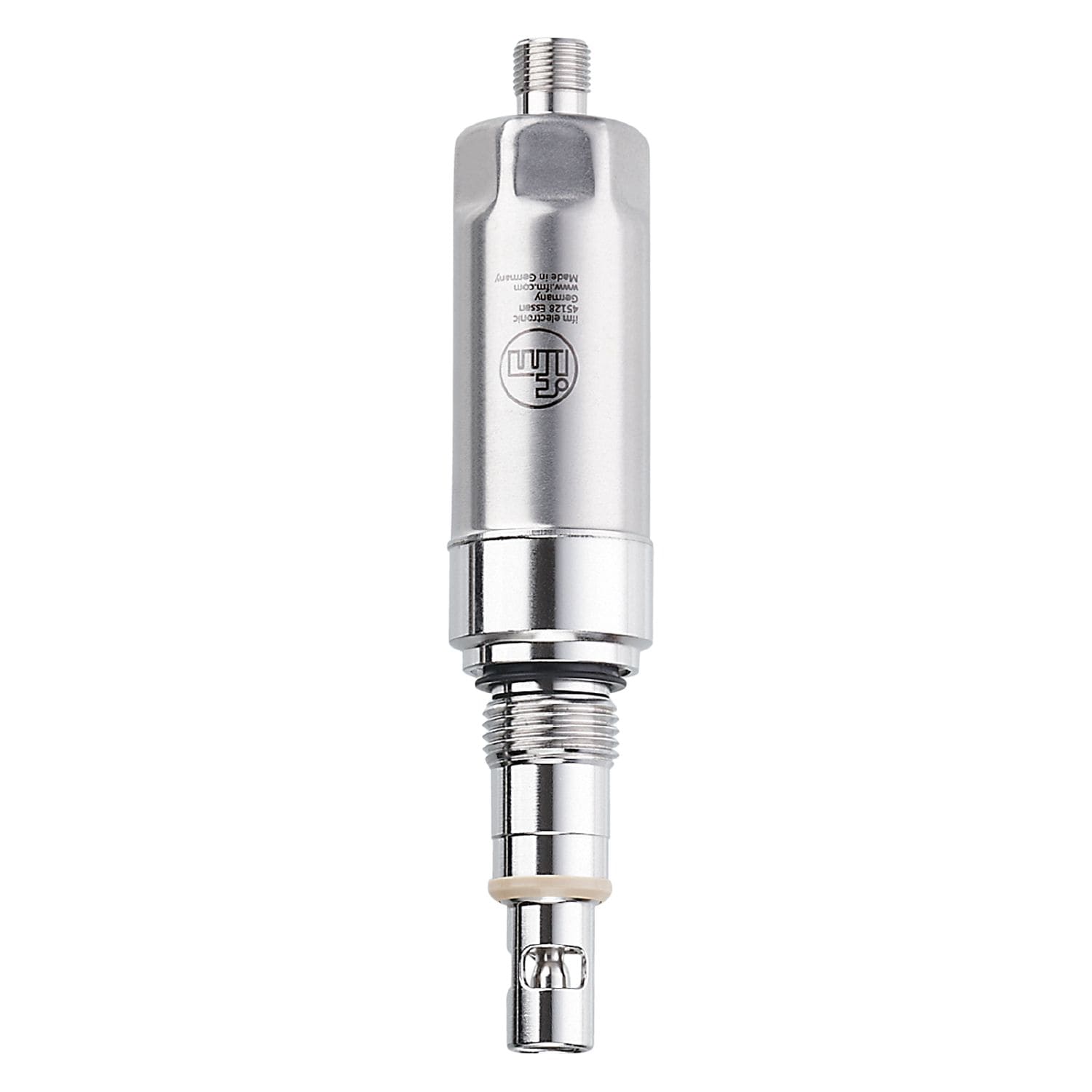

Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Process connection | threaded connection G 1/2 external thread sealing cone optional:hygienic PEEK gasket according to EHEDG |
Application
| Special feature | Gold-plated contacts | |
|---|---|---|
| Media | conductive liquids | |
| Note on media |
|
|
| Cannot be used for | See the operating instructions, chapter “Function and features”. | |
| Medium temperature [°C] | -25…100; (< 1 h: 150) | |
| Pressure rating [bar] | 16 | |
| Vacuum resistance [mbar] | -1000 |
Electrical data
| Operating voltage [V] | 18…30 DC |
|---|---|
| Current consumption [mA] | < 60 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 2 |
| Measuring principle | konduktiv |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analogue signal; IO-Link |
| Output function | analogue output; scalable; selectable conductivity / temperature |
| Number of analogue outputs | 1 |
| Analogue current output [mA] | 4…20 |
| Max. load [Ω] | 500 |
Measuring/setting range
| Measuring range [µS/cm] | 0.04…1000 |
|---|
| Measuring range [°C] | -25…150 |
|---|
Accuracy / deviations
| Accuracy (in the measuring range) | 3 % MW ± 0,03 µS/cm | ||||||
|---|---|---|---|---|---|---|---|
| Resolution [µS/cm] |
|
||||||
| Drift [%/K] | 0,1 %/K MW | ||||||
| Repeatability | 1 % MW ± 0,010 µS/cm | ||||||
| Long-term stability | 1,5 % MW ± 0,015 µS/cm |
| Accuracy [K] | 20…50 °C: < ± 0,5 K; -25...150 °C: < ± 1,5 K |
|---|---|
| Repeatability [K] | 0,2 |
| Resolution [K] | 0.1 |
Response times
| Response time [s] | < 2; (T09; Damping = 0) |
|---|
| Response time [s] | < 9; (T09) |
|---|
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Measuring Sensor, Identification and Diagnosis | ||||
| SIO mode | no | ||||
| Required master port type | A | ||||
| Process data analogue | 1 | ||||
| Min. process cycle time [ms] | 5.6 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -40…60 |
|---|---|
| Storage temperature [°C] | -40…85 |
| Protection | IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68) |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 173 |
Mechanical data
| Weight [g] | 329.9 |
|---|---|
| Materials | stainless steel (1.4404 / 316L); PEI; FKM |
| Materials (wetted parts) | stainless steel (1.4435 / 316L); PEEK |
| Process connection | threaded connection G 1/2 external thread sealing cone optional:hygienic PEEK gasket according to EHEDG |
Remarks
| Remarks |
|
|
|---|---|---|
| Notes | Digital meets analogue: integrating modern IO-Link sensors the analogue way. The EIO104 allows you to realise two analogue signals from intelligent IO-Link sensors with several process values. | |
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12 (EN 61067-2-101); coding: A; Contacts: gold-plated |
|---|
