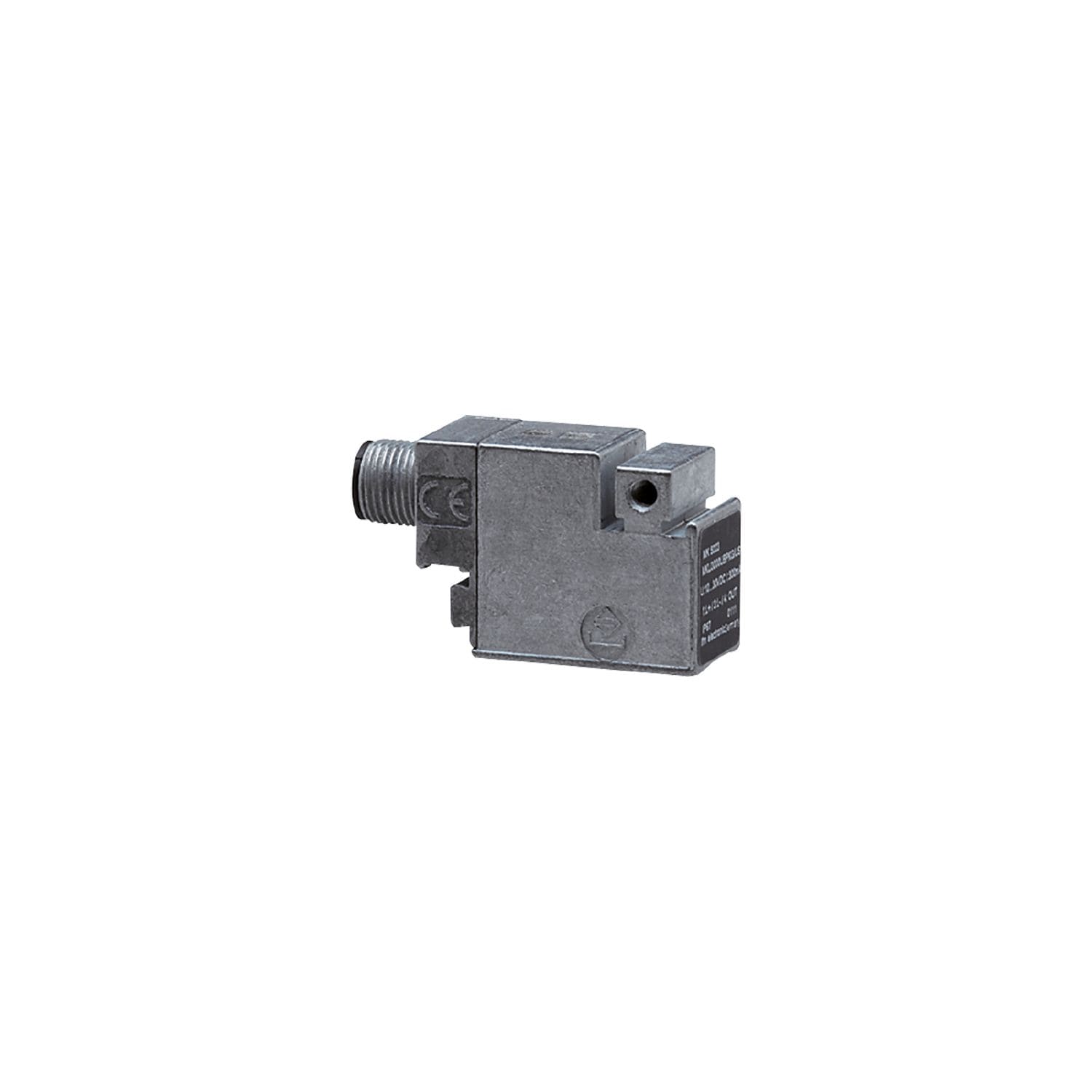

Datasheet
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Dimensions [mm] | 48 x 18 x 28 |
Application
| Special feature | Magnetic-field immune |
|---|---|
| Magnetic-field immune | yes |
Electrical data
| Operating voltage [V] | 10…30 DC |
|---|---|
| Current consumption [mA] | < 18 |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 20 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 300 |
| Switching frequency DC [Hz] | 40 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Response sensitivity [mT] | 3 |
|---|---|
| Travel speed [m/s] | < 1 |
Accuracy / deviations
| Hysteresis [mm] | 1.5 |
|---|---|
| Repeatability [mm] | 0.1 |
Operating conditions
| Ambient temperature [°C] | -25…75 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||
|---|---|---|---|
| Shock/vibration resistance | 30 g (11 ms) / 10-55 Hz (1 mm) |
Mechanical data
| Weight [g] | 74.6 |
|---|---|
| Sensing face | front |
| Cylinder type | pneumatic cylinders |
| Dimensions [mm] | 48 x 18 x 28 |
| Materials | diecast zinc |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection – plug
| Connection | Connector: 1 x M12; coding: A |
|---|
