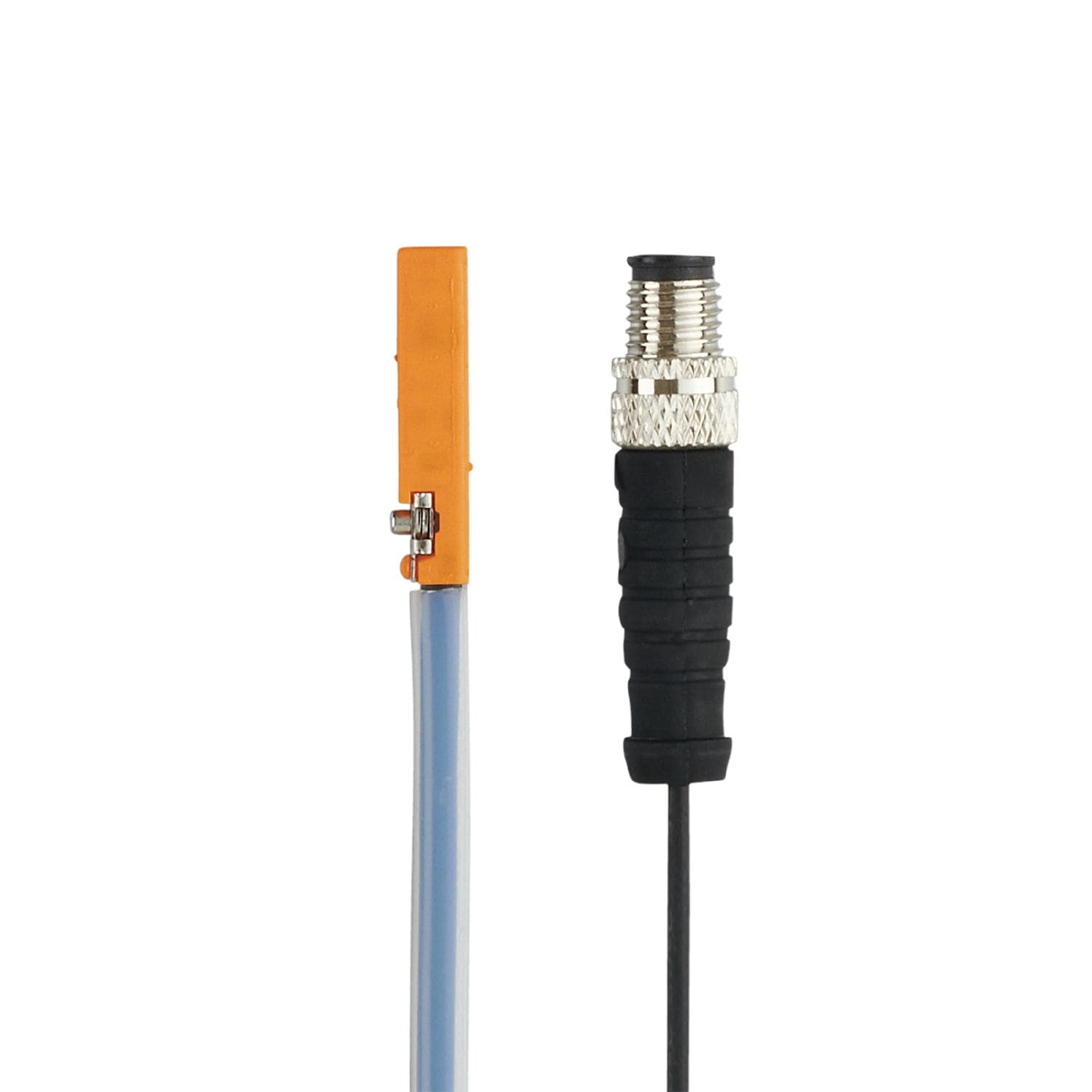

IFM MK5354 C-slot cylinder sensor

0.00

The price is not final. Please check with the manager!
SKU: MK5354 Categories: , Tag:

MKC3028BBPKG/G/0,3M/ZH/ASR

  • Self-locking fixture for quick mounting and easy adjustment
  • Easy fit ‘drop from the top’ into a slot
  • Moulded cable ensuring very good strain relief
  • Clearly
Contact Sales

Datasheet

Product characteristics
Electrical design PNP
Output function normally open
Dimensions [mm] 26.1 x 2.8 x 5.5
Electrical data
Operating voltage [V] 10…30 DC
Current consumption [mA] < 10
Protection class III
Reverse polarity protection yes
Max. power-on delay time [ms] 30
Outputs
Electrical design PNP
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 10000
Short-circuit protection yes
Overload protection yes
Detection zone
Response sensitivity [mT] 2.8
Travel speed [m/s] > 10
Accuracy / deviations
Hysteresis [mm] 1.5
Repeatability [mm] < 0.2
Operating conditions
Ambient temperature [°C] -25…85
Protection IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD – CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 class B
UL approval
UL Approval no. C008
Mechanical data
Weight [g] 15
Mounting flush mountable
Cylinder type C-slot cylinders
Dimensions [mm] 26.1 x 2.8 x 5.5
Materials housing: PA; fastening clamp: stainless steel; protective tube: PTFE
Displays / operating elements
Display
switching status 1 x LED, yellow
Remarks
Pack quantity 1 pcs.
Electrical connection – plug
Connection Cable: 0.3 m, PUR; protective tube
Connection Connector: 1 x M8; coding: A; Locking: snap-fit
