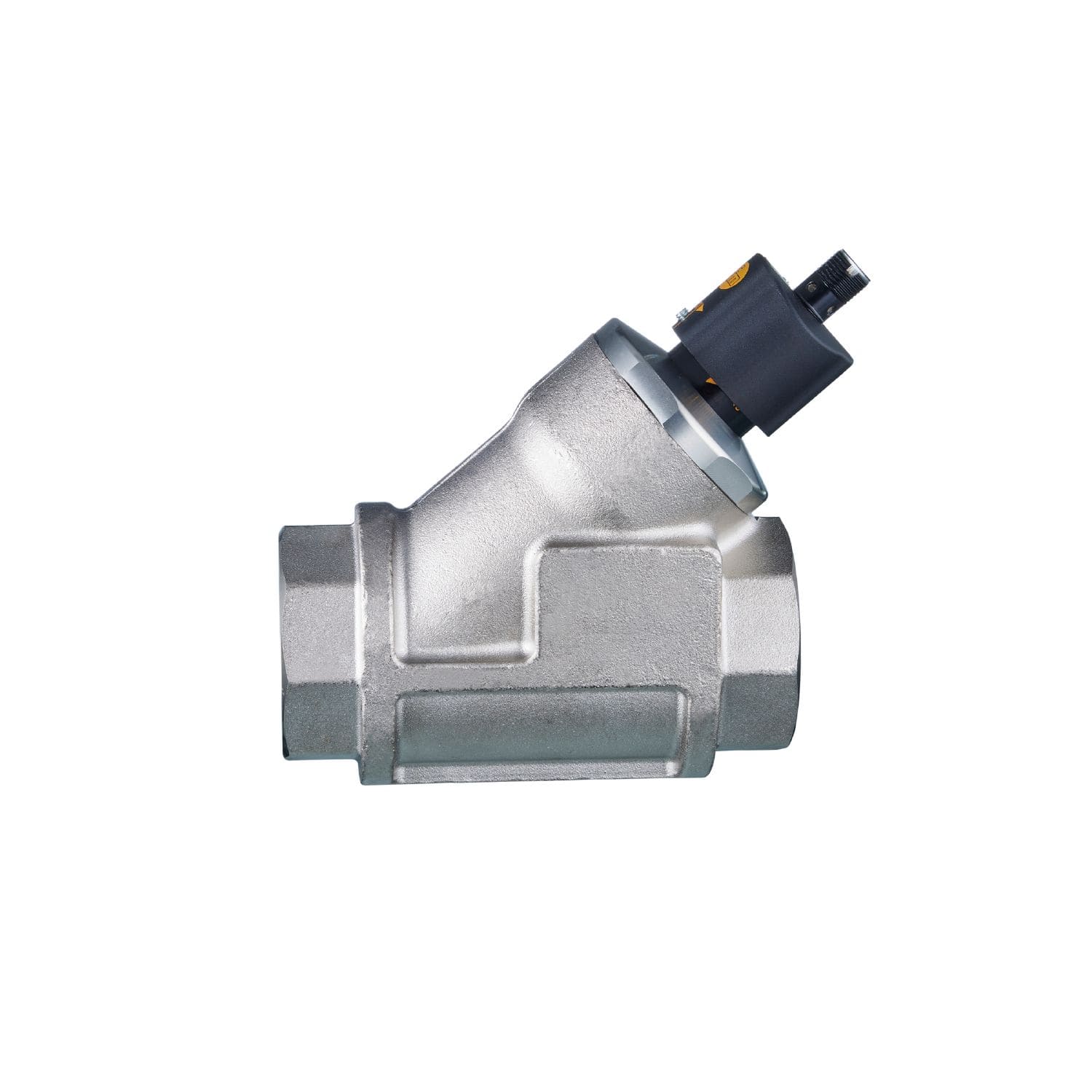

Datasheet
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|---|
| Process connection | Rp 1 1/2 |
Application
| Media | Liquids; water; glycol solutions; coolants |
|---|---|
| Medium temperature [°C] | 0…85 |
| Pressure rating [bar] | 25 |
| Pressure rating [Mpa] | 2.5 |
Electrical data
| Operating voltage [V] | 10…30 DC; (to SELV/PELV) |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Short-circuit protection | yes |
| Overload protection | yes |
Measuring/setting range
| Setting range [l/min] | 20…200 |
|---|
Accuracy / deviations
| Repeatability [% of the final value] | 1 |
|---|---|
| Hysteresis [l/min] | 5…10 |
| Measuring error [% of the final value] | ± 5 |
Response times
| Response time [s] | < 0.01 |
|---|
Operating conditions
| Ambient temperature [°C] | 0…60 |
|---|---|
| Storage temperature [°C] | -15…80 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 3318 |
Mechanical data
| Weight [g] | 1746.4 |
|---|---|
| Materials | brass chemically nickel-plated; PP; aluminium anodised; PA |
| Materials (wetted parts) | stainless steel (1.4310 / 301); stainless steel (1.4301 / 304); PBT; brass chemically nickel-plated; PP; PPS; Polyolefin; O-ring: FKM |
| Process connection | Rp 1 1/2 |
| Switching cycles mechanical | 10 million |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
|
||
|---|---|---|---|
| Notes | Please note the changed housing design! | ||
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Diagrams and graphs
|
Pressure loss
|
|
|---|
